    RGB Plastic Color Sorter Machine For PP Granules Sorting 220V

    Ask Lasest Price
    Brand Name : JIETAI ZHINENG
    Model Number : 6SXM-80A
    Certification : CE, ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100Pcs/Month
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

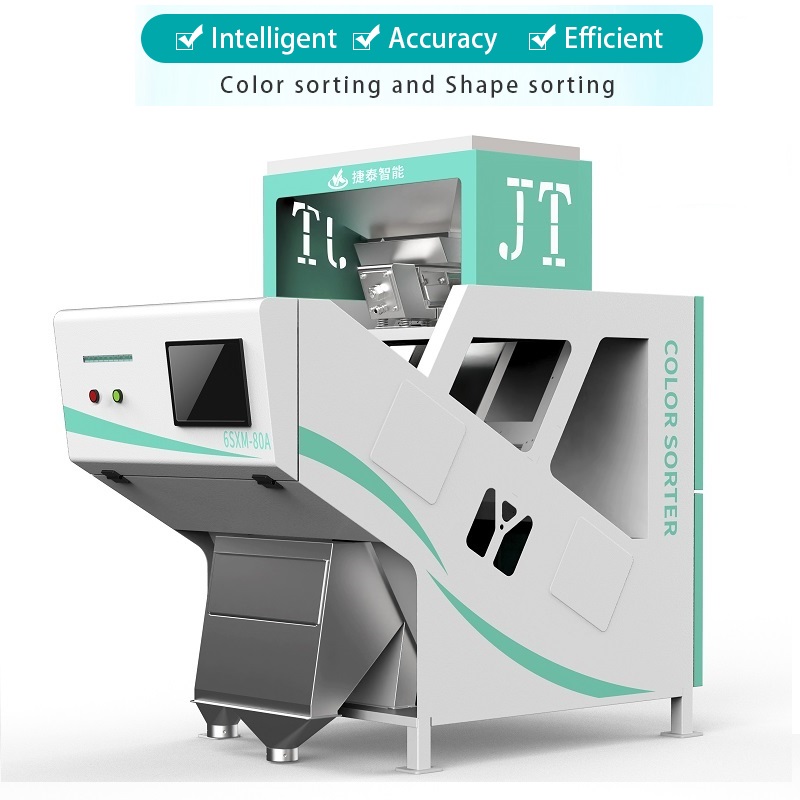

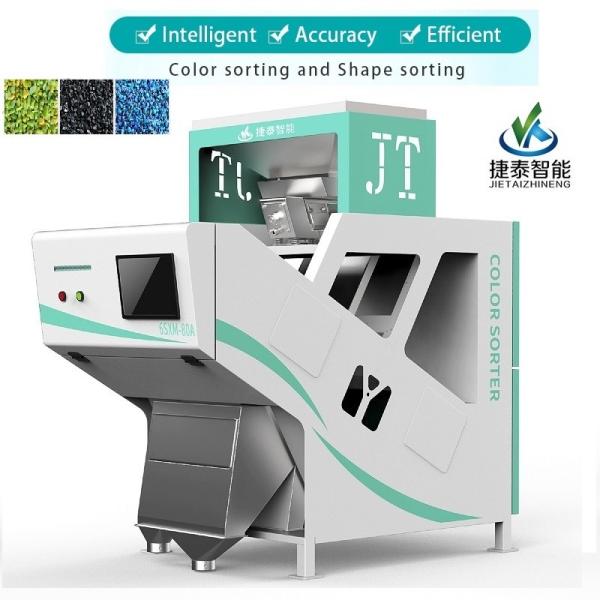

    RGB Plastic Color Sorter Machine For PP Granules Sorting 220V

    JIETAI Plastic Color Sorter is a smart,automated color sorting machine that helps you sort plastic flakes,plastic granules,plastic chipes,plastic tubes and remove any defects and foreign materials with a high precision.


    Color Sorter Working Principle

    Color Sorter working principle is to use the photoelectric detection technology and image acquisition system to obtain the (RGB) red, green and blue optical information of the material, convert the optical characteristics of the material into a photoelectric signal, and then send the signal to the control system to drive the ejector uses compressed air to blow out foreign particles in the material.


    Technical Parameters

    Model

    NO.

    6SXM-80A

    Accuracy

    (Percent)

    99.99

    Optical Carryover

    (Bad:Good)

    30:1

    Capacity

    (T/H)

    0.8-1.6

    Power

    (kwh)

    1.5

    Air Pressure

    (Mpa)

    0.6-0.8

    Air Consumption

    (L/M)

    ≤0.6

    Dimension(mm)

    (L*W*H)

    758*1397*1497

    Weight

    (kg)

    260

    Product Features

    1.Easy to operate,Low maintenance cost.

    2.High performance-price ratio.

    3.Simple structure,small footprint.

    4.Large output and low power.

    5.High accuracy of color separation

    Plastic Processing

    Sorting Performance

    Cooperation Case

    Our machine can be found everywhere in China,Thailand,India,Bangladesh,Philippines and others more countries.


    Packaging&Shipping

    Our products use professionalwooden cases with PE plastic bag..Package size will depend on each model size.


    Our Service

    Before sales services
    We will help you know about our color sorter,meets your special requirement according to actual condition.
    If you want to have your own logo printed on the macine or want to customize your own color for the machine, tell us,we can help you.

    After sales services
    1. Provide free training,consulting and technical support for users;
    2. Provide personalized programs to the demands of customers;
    3. Upgrade software for free for a life time;
    4. Provide free warranty service for one year(except the wearing spare parts);
    5. Provide 7*24 hours consultation and urgent servicce for users.
