Color Sorter also named color sorting machine, color sorter machine
or optical sorting machine, it is according to the color
differences of granular materials, using high-resolution CCD
optical sensor to drive solenoid valve to sorting different
granular materials.Jietai Color Sorter has been widely used in many industry in the world.
Such as agricultural products, food and mining industries, The most
common use is sorting rice, wheat, corn, peanut, a variety of
beans, seeds, tea, herbs, dried vegetables, recycled plastic, salt
and ore etc

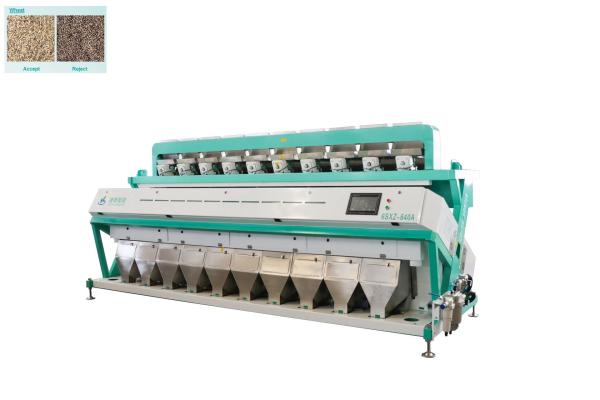

Jietai Color Sorter Technical Parameters
| MODEL | 6SXZ-640A |
| Chutes/Channels | 10 / 640 |
| Throughput(T/H) | 8-16 |
| Accuracy(Percent) | ≥99.99% |
| Power(Kwh) | 6.0 |
| Power Voltage | 220V/50Hz |
| Air compressure(Mpa) | 0.6-0.8 |
| Air Consumption(L/M) | ≤3.9 |
| Weight(Kg) | 1820 |
| Dimension(L*W*H) | 3895*1621*1816mm |
Jietai Color Sorter Features
＊IOT color sorter system
Highly humanized interface of human-machine interaction, Smart
cloud interconnect, Remote control, accurate big data statistics
and analysis.Call the multiple preset color selection modes at any
time.
＊HD image capture system
Full-color high-speed CCD sensor recognizes 0.04mm²area,Nikon
camera,super high resolution,ultra-sensitive ,wide vision, low
distortion.
＊Multi-core parallel image processing system
Multi-core parallel image processing system, flexible matching and
synchronous operation of color sorting/shape sorting.
＊Intelligent high-frequency solenoid valve
Ultra-low air consumption, ultra-low carryover ratio, intelligent
detect the working status of ejectors,avoid the fault and prolong
the life of ejectors.
＊Shadowless colorful spectrum LED
Taiwan Yiguang,shadow-less LED colorful light source, multi-angle
shadow-less light path technology.
＊Input and Output system
Adopting a new pressure-resistant structure to feed, which greatly
increases the output of the machine and ensures the stability of
the machine.The straight-through discharge structure solves the
problem of material blocking and stacking.
Wheat Sorting Performance
This series can also work for other grains such as
corn,sesame,millet,etc.

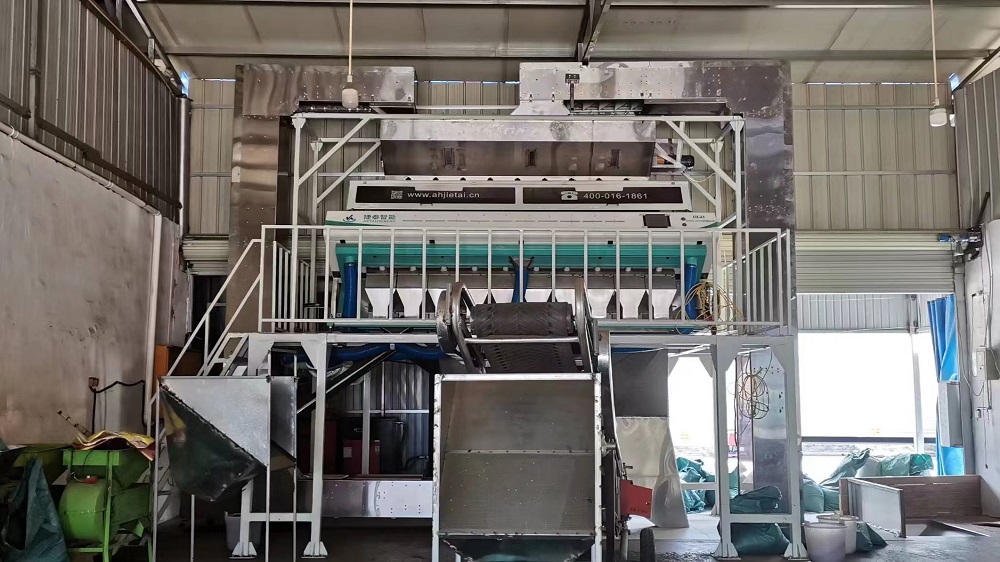

Cooperation Case
At present, our products have been distributed to more than 50
countries and regions around the world, providing high-quality
products and services to global customers.
Packaging Details
Our products use professionalwooden cases with PE plastic
bag.Package size will depend on each model size.
Our Service
Our Service Team
Before sales services
We will help you know ahout our color sorter,meets your special
requirementaccording to actual condition.
After sales services
① Provide free training,consulting and technical support for users;
② Provide personalized programs to the demands of customers;
③ Upgrade software for free for a life time;
④ Provide free warranty service for one year(except the wearing spare
parts);
⑤ Provide 7*24 hours consultation and urgent servicce for users.
Plaese feel free to inquire if you are interested in our procducts!
