How The Color Sorter Works
Color Sorters are machines used on the production lines in bulk
food processing and other industries.They sort materials by their
colors or shapes, If it is found that there are unqualified
materials or impurities in the materials, the ejector will blow out
the rejects in the hopper.
Raw Material are put into the machine from its feeding hopper on
the top,vibrated by vibration device and sliding along material
chute into the zone of observation in sorting chamber through
sensor and background plate.Under the effect of light source,CCD
sensor receives compound light from materials being
sorted.According to the light intensity and color changes,make the
system produce output signal and drive solenoid valve to work
,ejecting the discolor grain to defect chamber and good materials
continue to fall into the finished goods chamber.
Technical Parameters
Model
NO. | 6SXZ-768 |
Accuracy
(Percent) | 99.99 |
Optical Carryover
(Bad:Good) | 30:1 |
Capacity
(T/H) | 11.0-19.0 |
Power
(kwh) | 7.0 |
Air Pressure
(Mpa) | 0.6-0.8 |
Air Consumption
(L/M) | ≤3.8 |
Dimension(mm)
(L*W*H) | 4685*1621*1818 |
Weight
(kg) | 2600 |
Advantage of Jietai Color Sorter
►No need to debug, you can use after power-on, without any special
experience.
►Easy to operate,one-click to choose the sorting modes, such as
normal rice, japonica rice, glutinous rice, black rice and red
rice.
►The quality is controllable, you can adjust the sorting accuracy
freely to meet the needs of differentiated processing and the
sorting performance is up to 99.99%.
►It can do second sorting,low consumption and carryover ratio is
more than 30:1,the income is guaranteed.
►The output is flexible, and it can process 3.0-6.0 tons per hour,
which can meet the needs of various processing easily.
►Intelligent ejectors and ultra-low air consumption to achieve low
carryover ratio.
►Intelligent self-inspection, dust removal and anti-breakage,
automatic dust cleaning and automatic adjustment of signals and
lights to maintain the best color sorting state.
►Worry-free after-sale service, free regular inspection and quality
guaranteed.
Sorting Application
Peanut:Sort peanut,groundnut,goober pea,groundnut kernels,shelled
peanut,unhulled peanut etc

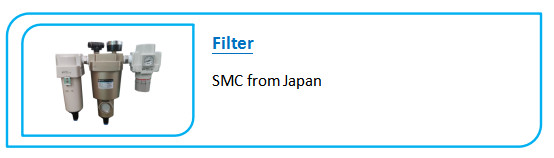

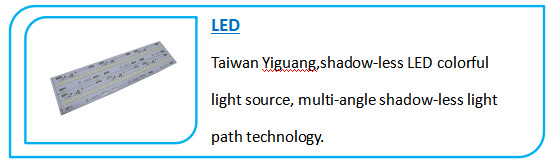

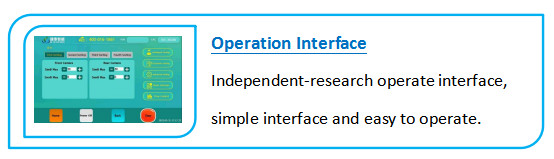

JIETAI Color Sorter Core Parts
Cooperation Case
Our machine can be found everywhere in
Thailand,China,India,Algeria,Bangladesh,Myanmar
and others more countries.
Packaging&Shipping
Our products use professional wooden cases with PE plastic
bag..Package size will depend on each model size.
Our Service
Before sales services
We will help you know about our color sorter,meets your special
requirement according to actual condition.If you want to have your
own logo printed on the macine or want to customize your own color
for the machine, tell us,we can help you.
After sales services
1. Provide free training,consulting and technical support for
users;
2. Provide personalized programs to the demands of customers;
3. Upgrade software for free for a life time;
4. Provide free warranty service for one year(except the wearing
spare parts);
5. Provide 7*24 hours consultation and urgent servicce for users.
Contact Us
FAQ
1.Q:How about the guarantee period?
A:The color sorter(excluding the wearing parts) is warranted for
one year for free from date of purchase.we provide a lifetime
maintenance service.
2.Q:Will you accept L/C as payment?
A:L/C ,T/T is OK.
3.Q:How about engineers service oversea?
A:Engineers available to service machinery overseas.
4.Q:How to use the machine?
A:We will supply customer the installation catalog or video
online.We will ask our engineer to teach you and Our engineers will
also train your person when they go to your place for debugging.
5.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three
photos,the raw material,good material (which is you want) ,bad
material (which is you want to discard).We send our sorting video
to you.
6.Can you supply the accessories parts of color sorter?
A:Yes,we can supply some spare parts when you need.
